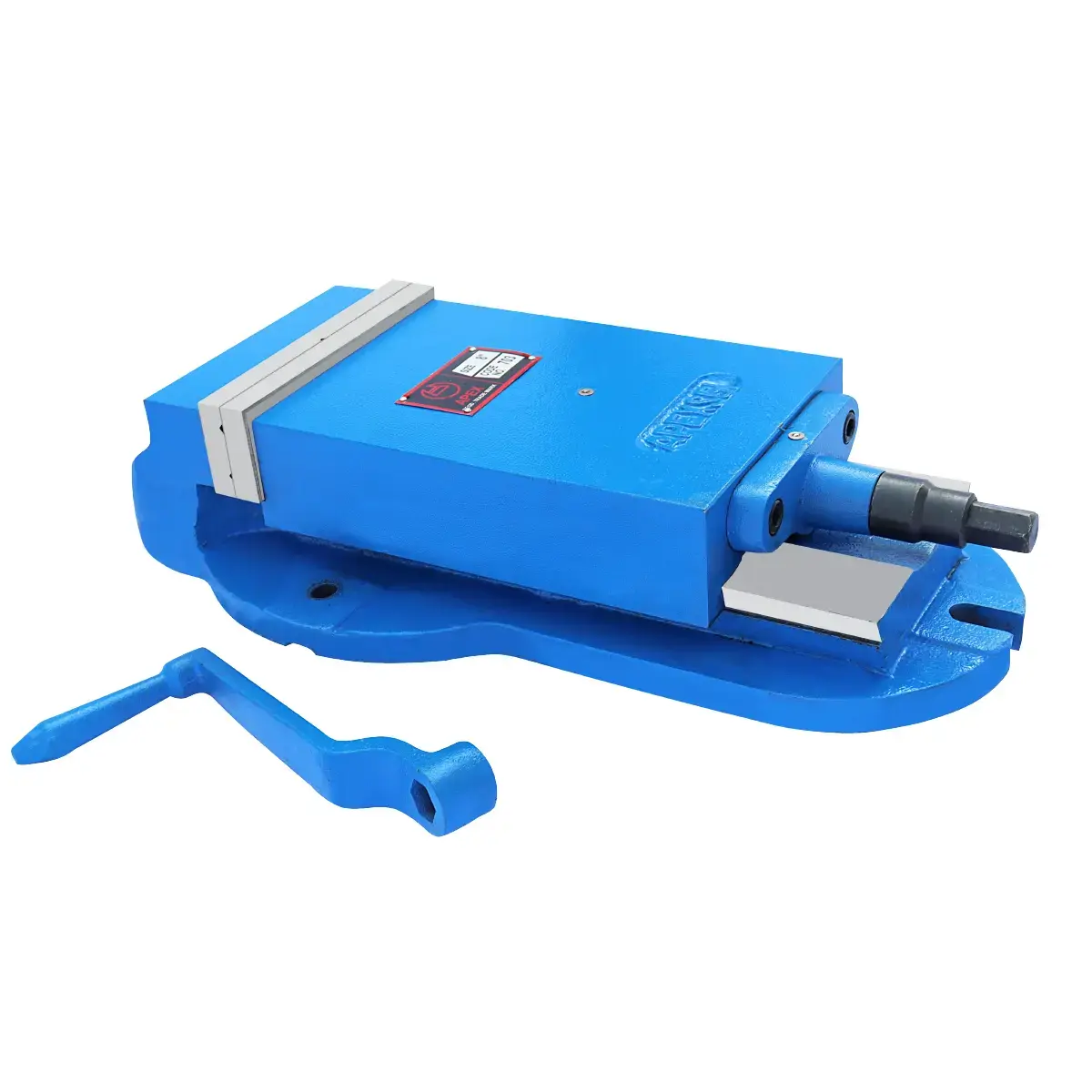

Milling Machine Vice

APX - SG 703 - SG 703P

Description

Fixed & Swivel Base

FEATURES

(Dovetailed Slide) Vee sideways adjustable for giving prolonged working life.
Manufactured to consistent accuracy to give prolonged reliable service.
Totally enclosed design prevents the ingress of foreign maer and damage to the screw and nut.
Swivel base graduated fully 360°.
Spares readily available.
Tenon Slots in slide and swivel base.
Available as plain and swivel vice.

CONSTRUCTION

High tensile Stress Relieved quality casting, precision ground hardened & tempered steel jaws plates.
ACME thread interchangeable screw, Steel nut contained in totally enclosed sliding jaw.
Complete with all steel handle.

Technical Specifications

Size in inches	3	4	6	6	8	10	12
Width of Jaws (mm)	75	100	150	160	200	250	300
Depth of Jaws (mm)	38	40	55	55	60	70	75
Opening of Jaws (mm)	75	100	150	235	200	250	300
Length Overall (mm)	285	320	485	550	605	725	820
Height Overall (mm) 703P	70	85	112	115	128	140	145
Height Overall (mm) 703	100	115	145	145	178	190	195
Width Overall (mm) 703P	135	155	245	245	300	350	425
Width Overall (mm) 703	155	175	280	280	330	370	450
Tenon Slot Size (mm)	13	16	20	20	20	-	-
Weight (Approx in Kgs.) 703	9.200	16.550	44.500	49.400	85	125	173
Weight (Approx in Kgs.) 703P	6.800	11.600
