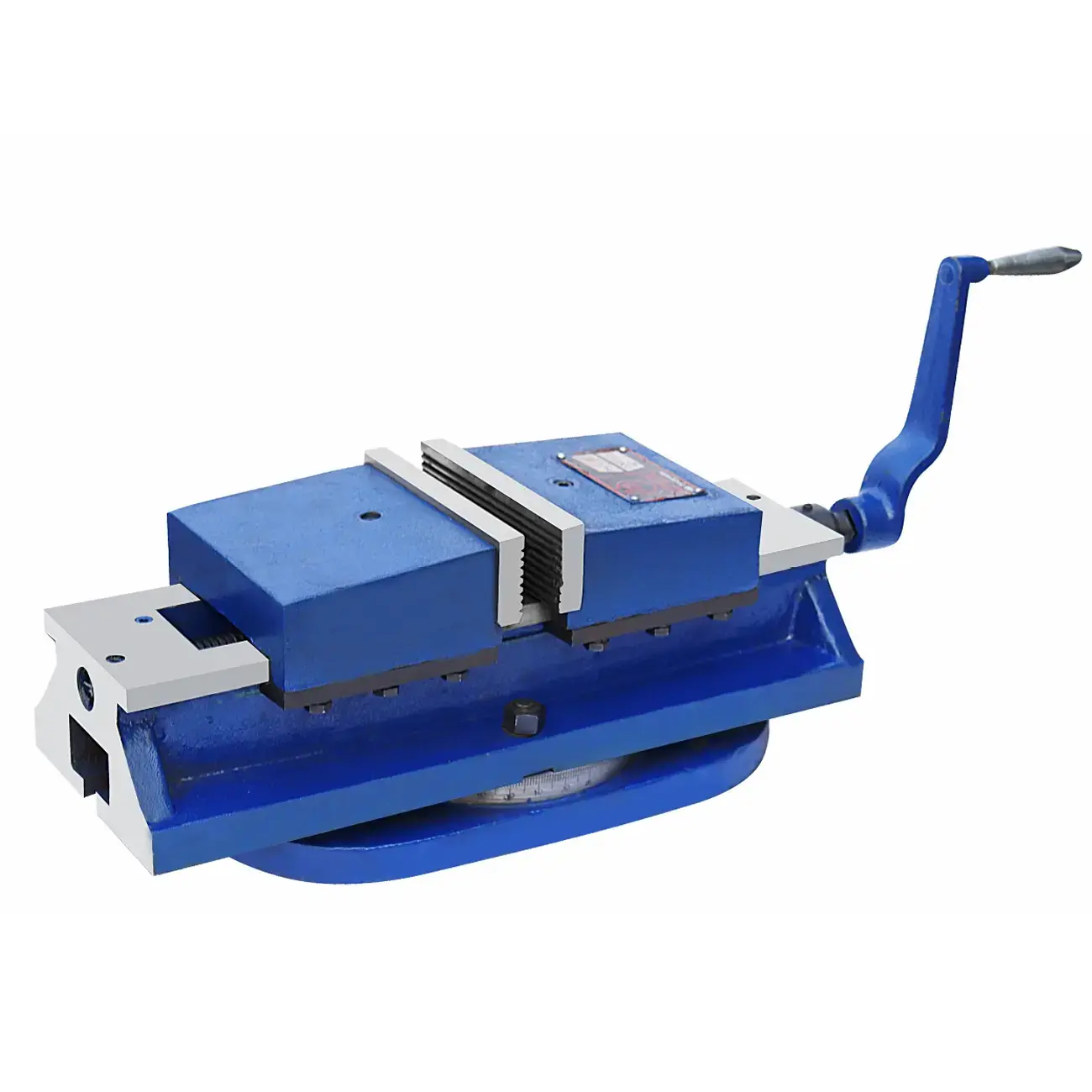

APEX - 773 - 773P
Description
FEATURES
CONSTRUCTION
| Size in inches | 4 | 6 |
|---|---|---|
| Width of Jaws (mm) | 105 | 160 |
| Depth of Jaws (mm) | 40 | 50 |
| Opening of Jaws (mm) | 145 | 200 |
| Length Overall (mm) | 460 | 540 |
| Height Overall (mm) 773P | 135 | 150 |
| Height Overall (mm) 773 | 175 | 190 |
| Width Overall (mm) 773P | 125 | 170 |
| Width Overall (mm) 773 | 135 | 180 |
| Tenon Slot Size (mm) | 16 | 20 |
| Weight (Approx in Kgs.) 773P | 21 | 40 |
| Weight (Approx in Kgs.) 773 | 24 | 47 |
