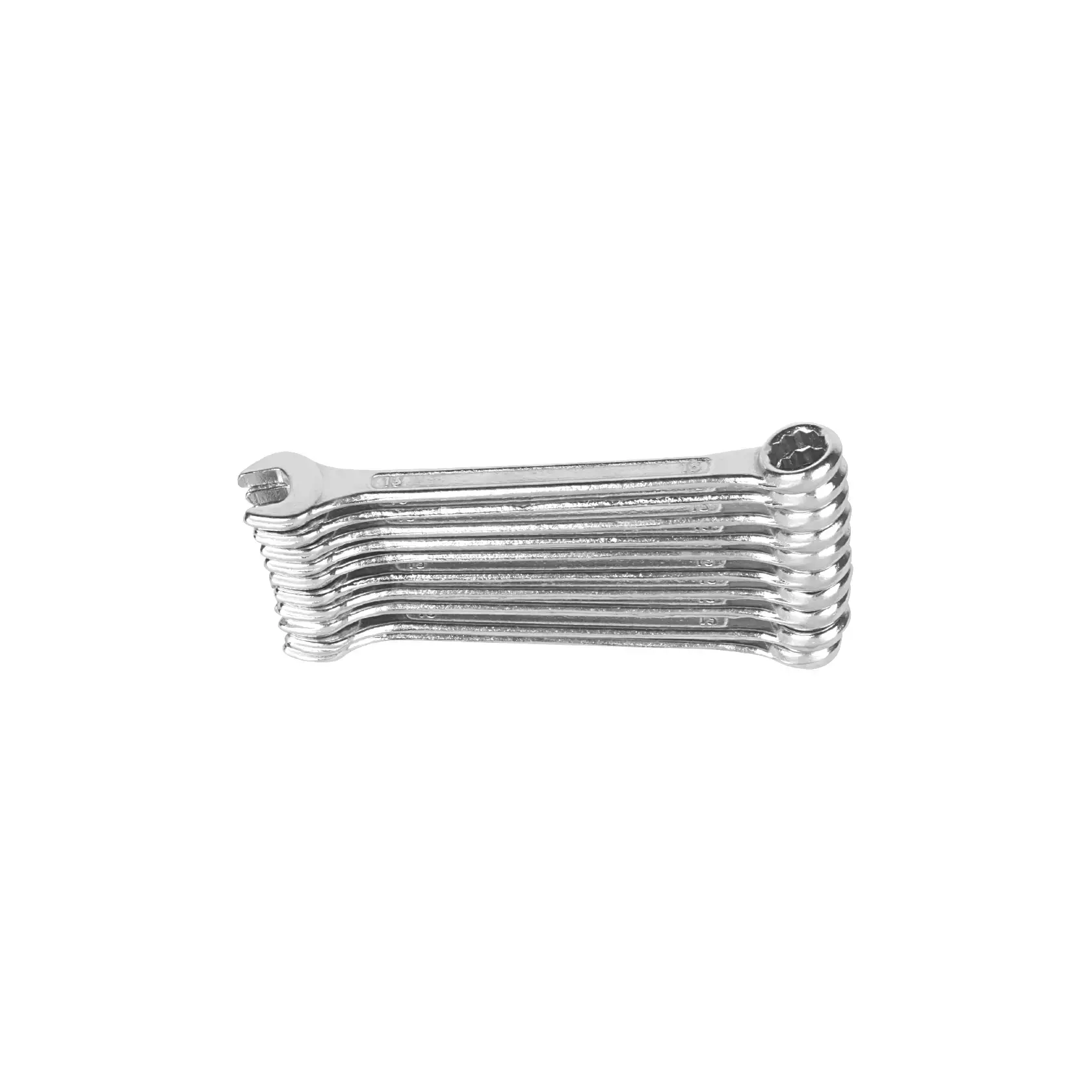

APX-105
Description
Drop Forged From Carbon Steel / Chrome Vanadium Steel
Hardened And Tempered.
Each Head Set At 15º Angle
Chrome Plated
Available in Short Pattern / Long Pattern
| Size MM | Weight in Gms (Carbon Steel) | Weight in Gms. (CRV) |
|---|---|---|
| 6 | 0.018 | 0.018 |
| 7 | 0.020 | 0.020 |
| 8 | 0.024 | 0.024 |
| 9 | 0.028 | 0.028 |
| 10 | 0.038 | 0.038 |
| 11 | 0.048 | 0.048 |
| 12 | 0.055 | 0.055 |
| 13 | 0.060 | 0.060 |
| 14 | 0.080 | 0.080 |
| 15 | 0.090 | 0.090 |
| 16 | 0.105 | 0.105 |
| 17 | 0.115 | 0.115 |
| 18 | 0.130 | 0.130 |
| 19 | 0.140 | 0.140 |
| 20 | 0.165 | 0.165 |
| 21 | 0.175 | 0.175 |
| 22 | 0.185 | 0.185 |
| 23 | 0.190 | 0.230 |
| 24 | 0.215 | 0.260 |
| 25 | 0.250 | 0.300 |
| 26 | 0.265 | 0.325 |
| 27 | 0.280 | 0.350 |
| 28 | 0.310 | 0.400 |
| 29 | 0.340 | 0.455 |
| 30 | 0.400 | 0.480 |
| 32 | 0.440 | 0.575 |
| Metric Sizes Sets | |||
|---|---|---|---|
| No. of Pcs | Set | Sizes mm | Qty./CTN Set |
| 8 Pcs | 8-19 | 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19 | 40 |
| 12 Pcs | 6-22 | 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22 | 20 |
| 12 Pcs | 8-24 | 8, 9, 10, 12, 13, 14, 15, 17, 19, 22, 24 | 15 |
| 25 Pcs | 6-32 | 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32 | 4 |
