APEX-754 - 754G
Description
FEATURES
CODE 753 & 754 : Machined
CODE 753G & 754G : Precision Ground

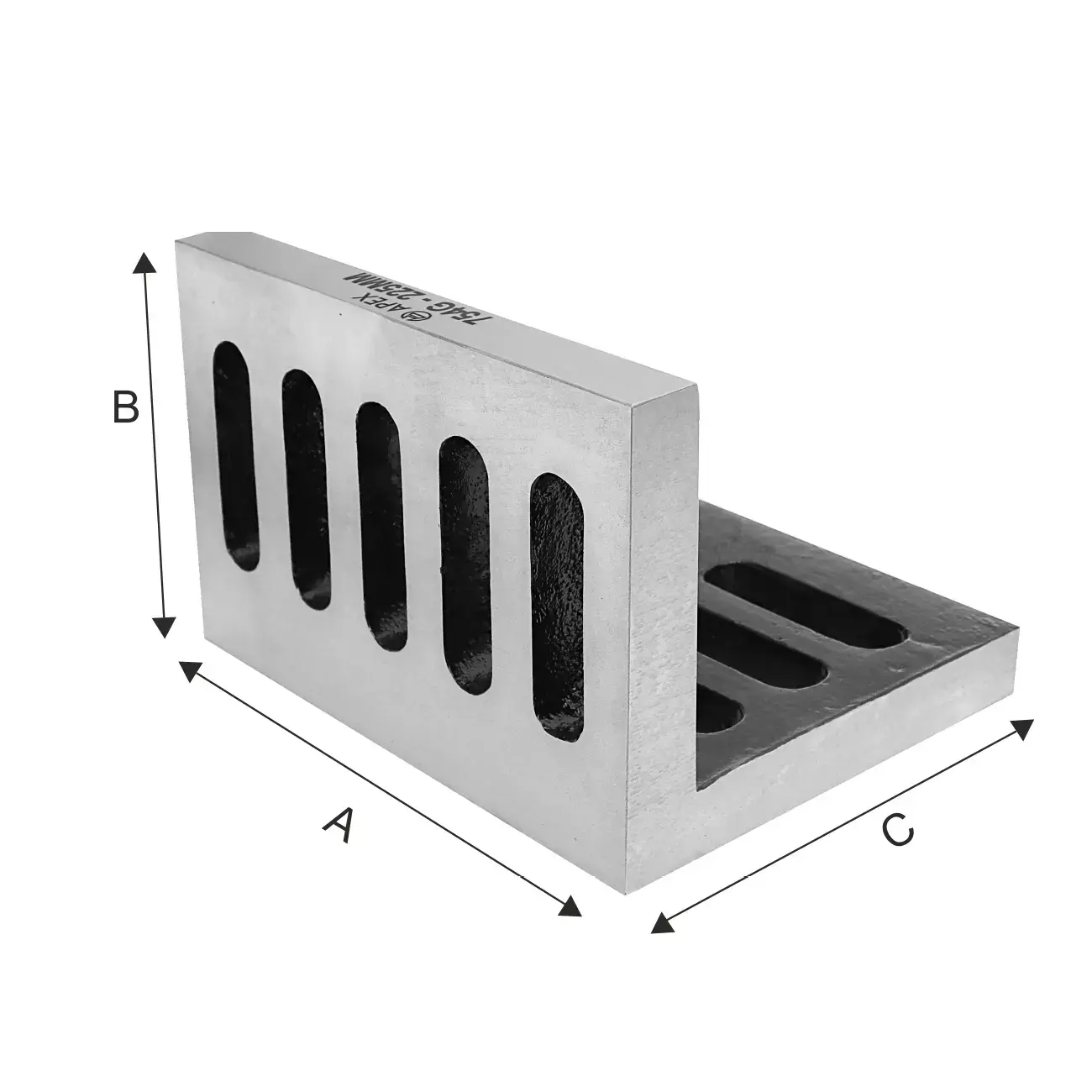

| Code 753 | Code 754 | Length in inches (A) | First Angle in inches (B) | Second Angle in inches (C) | Weight (in Kgs.) 753 | Weight (in Kgs.) 754 |
|---|---|---|---|---|---|---|
| 753-1 | 754-1 | 3 | 2.1/2 | 2 | 0.6 | - |
| 753-2 | 754-2 | 3.1/2 | 3 | 2.1/2 | 0.8 | - |
| 753-3 | 754-3 | 4.1/2 | 3.1/2 | 3 | 1.4 | 1.3 |
| 753-4 | 754-4 | 6 | 5 | 4.1/2 | 4 | 3 |
| 753-5 | 754-5 | 7 | 5 | 4.1/2 | 5 | 5 |
| 753-6 | 754-6 | 8 | 6 | 5 | 6 | 5 |
| 753-7 | 754-7 | 9 | 7 | 6 | 8 | 8 |
| 753-8 | 754-8 | 10 | 8 | 6 | 11 | 10 |
| 753-9 | 754-9 | 12 | 9 | 8 | 20 | 20 |
